Welcome to Printasleeve - High Quality Printed Sleeving Products for All Your Professional Needs

Printable heatshrink sleeving and markers

Print ready markers and heatshrink sleeving have undergone a number of highly specific flattening and cleansing processes to ensure optimum printing.  They are available in a number of grades meeting different industry specific standards including MIL-SPEC, fire safety, RoHS and REACH, UL and CSA regulations, and are offered in a wide range of colours and sizes as continuous sleeving or as labels on organised, ladder-style carriers.

In addition to being manufactured from compounds chemically composed to ensure the optimum surface tension for print permanence, print ready markers and heatshrink have been flattened and, in the majority of cases, cleansed with specific substances to enable high performing print capabilities.  Each of the below listed grades are used at Printasleeve’s own print facility allowing us to recommend the best fit for your requirements and supplement in-house printing if and when required.  A first-class, fast, reliable service is guaranteed and many sizes and colours are ex-stock, for next day delivery.

FLATTENED, PRINTABLE SLEEVING ON REELS

PRINTASHRINK ECO (FLAT)

Flattened 2:1 shrink ratio heatshrink polyolefin with good print performance.  It is zero halogen, has a working temperature of 105⁰C and is available in black, white and yellow up to 50.8mm ID as standard.

PRINTASHRINK CPF/FR (FLAT) & CPF/FR3 (FLAT)

Flattened 2:1 & 3:1 shrink ratio, UL approved, commercial grade heatshrink polyolefin ideal for printers. It is UL approved, has a working temperature of 135⁰C and is fire retardant. It is available in a number of colours and sizes up to 50.8mm ID

PRINTASHRINK SPF (FLAT) & SPF3 (FLAT)

Flattened 2:1 & 3:1 shrink ratio, MIL-SPEC and UL approved heatshrink polyolefin with a working temperature of 135⁰C. It is ideal for identification in aerospace, military and defence applications. It is fire retardant and available in several colours and sizes up to 50.8mm ID

PRINTASHRINK LSZH (FLAT)

Flattened 2:1 shrink ratio, zero halogen, flame retardant, low smoke and toxicity heatshrink polyolefin. It is ideal for identification in fire safety, marine, mass transit and off-shore applications.  It is available in several colours and sizes up to 50.8mm.

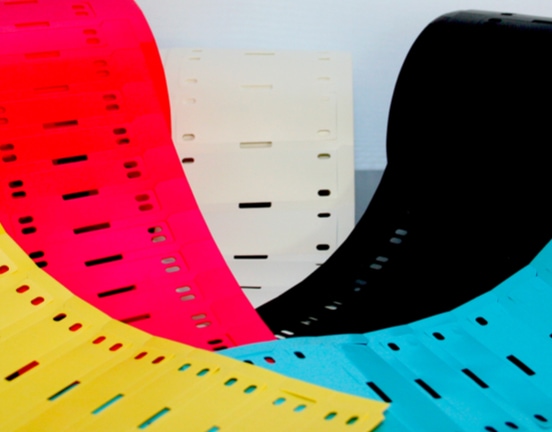

LADDER FORMAT MARKERS

PRINTASHRINK CPF/FR-L & CPF/FR3-L

Flattened 2:1& 3:1 shrink ratio heatshrink polyolefin organised on ladder-style carriers. It is supplied in the form of printable labels. The tubing is UL approved, fire retardant, has a working temperature of 135⁰C and is available in a range of colours and sizes up to 50.8mm ID

PRINTASHRINK SPF/FR-L & SPF3-L

Flattened 135⁰C, MIL-SPEC and UL approved, 2:1 & 3:1 shrink ratio heatshrink polyolefin in the form of printable labels organised on ladder-style carriers. They are fire retardant and available in a range of colours and sizes up to 50.8mm ID

PRINTASHRINK LSZH-L

Flattened 2:1 shrink ratio, zero halogen, flame retardant, low smoke and toxicity heatshrink polyolefin in the form of printable labels. It is ideal for identification in fire safety, marine, mass transit and off-shore applications.  It is available in several colours and sizes up to 50.8mm

OTHER MARKERS AND LABELS

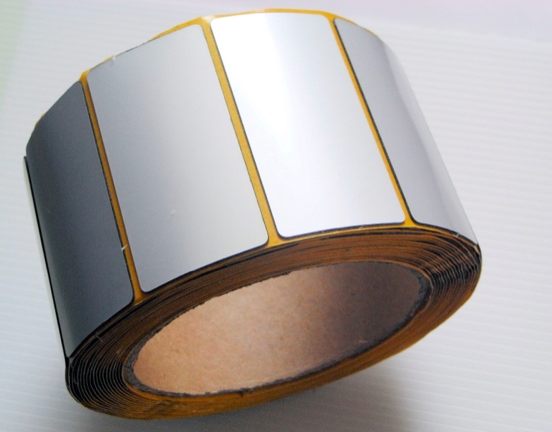

RAISED PANEL PLATES

Foam-backed polyester labels with permanent, adhesive which are designed to replace engraved plates for the identification of instrument panels, control panels, electrical cabinets, racks and any other property. Supplied in rolls, they are available in white, silver and many other colours and dimensions on request

WRAPAROUND LABELS

Also known as cable wraps, cable labels or cable markers, Wraparound labels are perfect for the easy identification of cables and wires. They are available in customised sizes and colours to suit virtually any cable or bundle diameter

TIE-ON CABLE LABELS

Made of thermoplastic polyether polyurethane (PUR or PU), they are halogen free, flame retardant (raw material fulfils UL94-VO), water and micro-organism resistant. They are designed to be fixed to the cable or wire using cable ties, and are available in many colours as standard

Print Spec Quote
Complete Cable Identification Solution Available

Complete Cable
Identification Solution

View More

Key Information

Recommend Use Approvals Grade Variants
Commercial and Industrial applications ASTM D 638, 2671, 570, 792, 257, AMS-DTL-744, 23053/5, FMVSS302, RoHS Compliant Printashrink Eco (FLAT)

(-30ºC- +105ºC, 2:1 shrink ratio, black, yellow or white as standard)

2:1 continuous sleeving
Commercial and Industrial applications (UL Approved)  SAE AS81531:1531:1998 4.6.2, MIL-STD-202F 215J, UL224, CSA certified, RoHS compliant Printashrink CPF/FR (FLAT)

(-55⁰C – +135⁰C, 2:1 or 3:1 shrink ratio, black, yellow and white as standard)

 2:1 continuous sleeving
 3:1 continuous sleeving
 2:1 Ladder-style, organised markers
3:1 Ladder-style, organised markers
Aerospace, military and defence applications  SAE-AMS-DTL-23053/5 class 1&3, SAE AS81531:1531:1998 4.6.2, MIL-STD-202F 215J, UL224 125⁰ 600V VW-1, CSA certified, RoHS compliant Printashrink SPF

(-40⁰C – +135⁰C, 2:1 or 3:1 shrink ratio, yellow and white as standard)

 2:1 continuous sleeving
 3:1 continuous sleeving
 2:1 ladder-style organised markers
 3:1 ladder-style organised markers
Fire safety, marine, mass transit and off-shore applications BS 6853, NF-16 101, CEN TS 45545-2, DIN 5510-2, UNI CEI 11170 cl LR4, NFPA130 (ASTM E 162, ASTM E 662), RoHS compliant Printashrink LSZH

(-30⁰C – +105⁰C, 2:1 shrink ratio, low smoke and toxicity, 8 different colours as standard)

2:1 continuous sleeving
2:1 ladder-style organised markers

Enquiry Form

Fields marked with an * are required

Free Artwork Service

As part of the fully comprehensive print process, we offer a free artwork service for both thermal and hot foil printing. This involves, advising on print suitability, resizing to fit final fitted size and re-ordering information supplied in spreadsheet format according to the sequence of installation or into kits.

To ensure superior print results, it stands to reason that artwork needs to be best quality and this is why we advise on whether artwork is suitable for purpose in terms of fine detail and ornate graphics which may not successfully transfer to smaller sleeves and markers, or where a high shrink rate is required. Furthermore, as heatshrinkable products do not shrink in a uniform manner (transverse and longitudinal shrink ratios differ widely) we resize artwork so that there is a strict correlation between original and final fitted dimensions.

We accept many formats for artwork including, but not limited to, tiff, eps, bmp, jpg, gif and PDF. For jpeg, save your image using the best quality. We use a single colour print system. This means the sleeving and print can be different colours, but the print itself can only be one colour. For best results send your image in black and white with what you would like printed in black. We can then take the image and print it on your selected sleeving in the correct print colour.

We also print from spreadsheets, CSV or text files, .lists or drawings. Where required, we can sort, print and pack according to the sequence of installation.

Complete Cable Identification Solution

With so many cable identification solutions on the market, it can be hard to match these to your specific needs. Printasleeve offers a complete service based on our many years of experience and development in this highly specialised field. We know what works and how to get the best results.

This allows us to offer a fully supported package to get you set up quickly and easily. Whether you are looking to source a complete cable identification package or consumables for an existing one, we will only offer products which have been fully tested by us and in which we have complete confidence. Take advantage of Printasleeve’s over 25 years of printing experience to find the perfect combination for your requirements.
