Printashrink LSZH-L

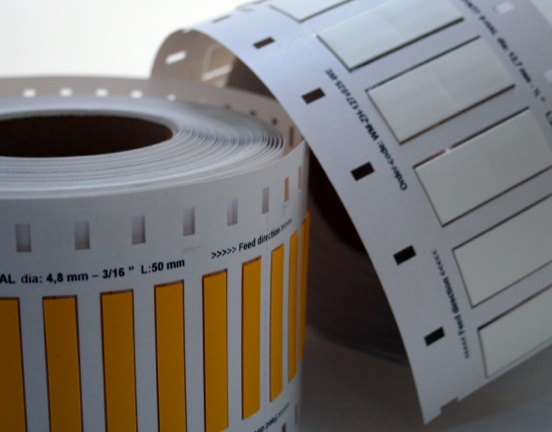

Printashrink LSZH-L is a flattened 2:1 zero halogen, flame retardant, low smoke and toxicity heatshrink polyolefin ideal for fire safety, marine, mass transit and off-shore applications. It is supplied as printable labels organised on ladder-style carriers and is available in a range of colours and sizes up to 50.8mm and can be printed as required.

This flattened 2:1 zero halogen, fire retardant, low smoke and fume heatshrink polyolefin tube is supplied on different sized and structured ladder-style carriers making it compatible with most printers. It is a UL/CSA approved sleeve which offers excellent fire safety characteristics and as such is ideal for marine, mass transit, and off-shore applications. It is available on bulk and smaller reels to suit any print set up and has been developed with thermal transfer printing in mind. We offer our full range of printing and cutting services on this high quality sleeve making it perfect for identification, branding and marking requirements.

Print Spec Quote
Free Artwork Service Available

Free Artwork
Service Available

View More

Complete Cable Identification Solution Available

Complete Cable
Identification Solution

View More

Technical Data

  • Shrink Ratio: 2:1
  • Operating Temperature -30°C - +105°C
  • Flame Retardant: Yes
  • Colours: Yellow, White, Black, Red, Blue, Green, Orange, Green/Yellow, Other colours available upon request
  • Sizes: 2.4 x 13, 19, 25, 38, 50 → 50.8 x 13, 19, 25, 38, 50
  • Packing: Rolls, mini-packs
  • Print: Yes, full range of text and logos
  • Approvals: BS 6853, NF-16 101, CEN TS 45545-2, DIN 5510-2, UNI CEI 11170 cl LR4, NFPA130 (ASTM E 162, ASTM E 662), RoHS compliant
  • Applications / Industries:

Properties Typical Values Test Methods
Shrink Ratio 2:1
Tensile Strength 13N/mm² ASTM D 638
Ultimate elongation 200% ASTM D 638
Specific gravity 1.4g/cm³ ASTM D 792
Longitudinal change ≤+5% ≤-10% ASTM D 2671
Water absorption ≤0.15% ASTM D 570
Flammability Pass ASTM D 635
Heat shock (4hrs) @ 175C, no dripping, cracking or flowing ASTM D 2671
Low temperature flexibility (4hrs @ -55°C) @ =30C, no cracking ASTM D 2671C
Heat ageing (168hrs) Elongation 100% ASTM D 638
Dielectric strength 20kV/mm² ASTM D 2671
Volume resistivity 10¹⁴Ωcm ASTM D 257
Chemical resistance Good AMS-DTL-23053/5
Copper corrosion No corrosion ASTM D 2671B
Fungus resistance Inert, no growth AMS-DTL-7444
Oxygen Index 36% ASTM D 2863
Print Spec Quote

Enquiry Form

Free Artwork Service

As part of the fully comprehensive print process, we offer a free artwork service for both thermal and hot foil printing. This involves, advising on print suitability, resizing to fit final fitted size and re-ordering information supplied in spreadsheet format according to the sequence of installation or into kits.

To ensure superior print results, it stands to reason that artwork needs to be best quality and this is why we advise on whether artwork is suitable for purpose in terms of fine detail and ornate graphics which may not successfully transfer to smaller sleeves and markers, or where a high shrink rate is required. Furthermore, as heatshrinkable products do not shrink in a uniform manner (transverse and longitudinal shrink ratios differ widely) we resize artwork so that there is a strict correlation between original and final fitted dimensions.

We accept many formats for artwork including, but not limited to, tiff, eps, bmp, jpg, gif and PDF. For jpeg, save your image using the best quality. We use a single colour print system. This means the sleeving and print can be different colours, but the print itself can only be one colour. For best results send your image in black and white with what you would like printed in black. We can then take the image and print it on your selected sleeving in the correct print colour.

We also print from spreadsheets, CSV or text files, .lists or drawings. Where required, we can sort, print and pack according to the sequence of installation.

Complete Cable Identification Solution

With so many cable identification solutions on the market, it can be hard to match these to your specific needs. Printasleeve offers a complete service based on our many years of experience and development in this highly specialised field. We know what works and how to get the best results.

This allows us to offer a fully supported package to get you set up quickly and easily. Whether you are looking to source a complete cable identification package or consumables for an existing one, we will only offer products which have been fully tested by us and in which we have complete confidence. Take advantage of Printasleeve’s over 25 years of printing experience to find the perfect combination for your requirements.
