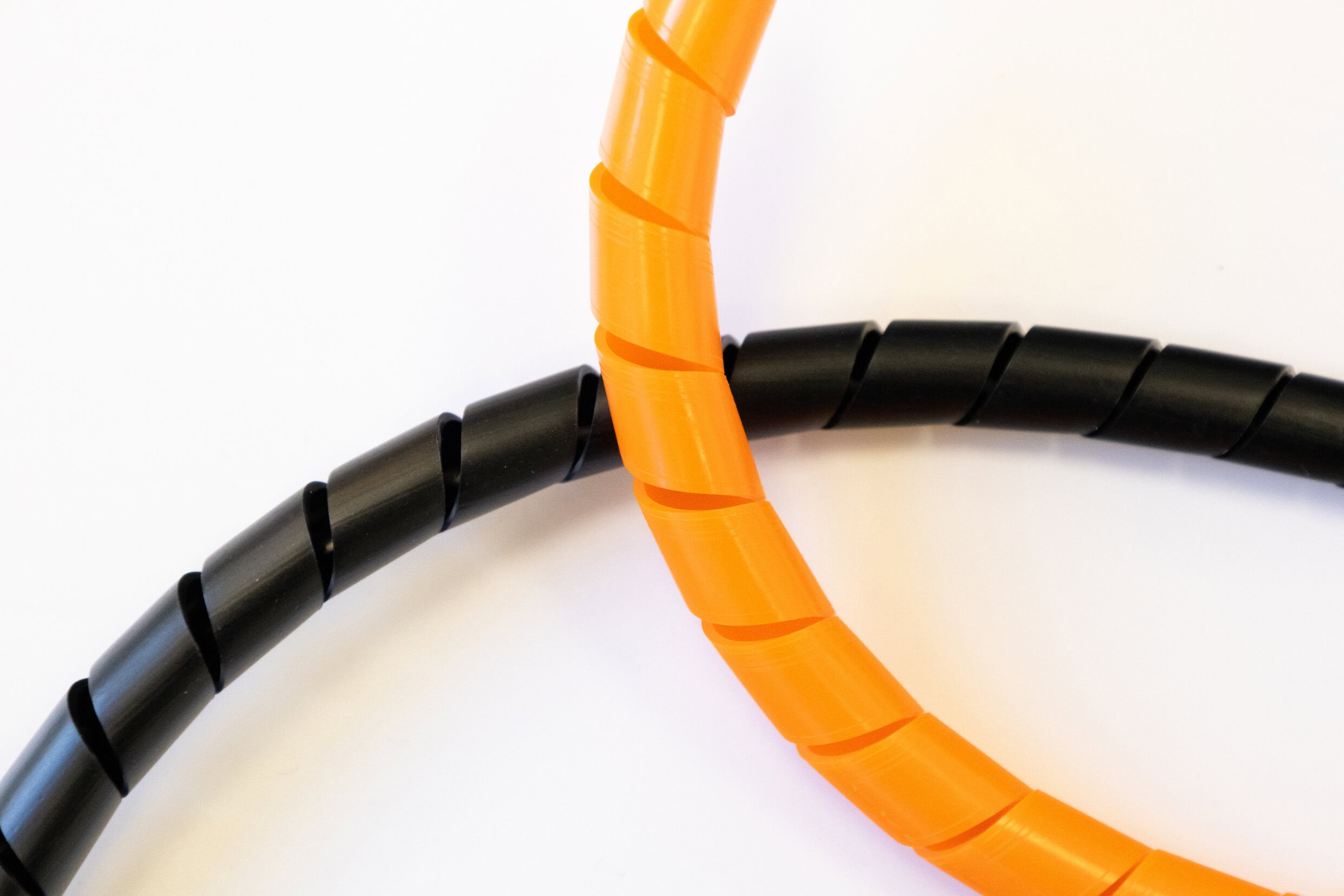

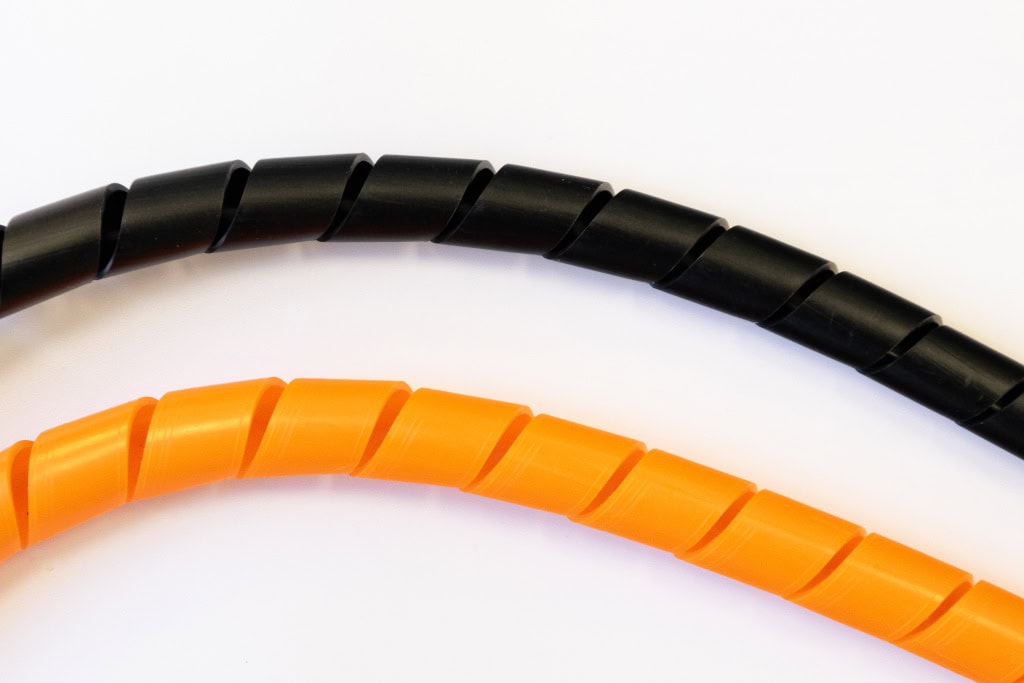

Spiral-B

Spiral-B is manufactured from low density polythene (LDPE) or nylon and offers a simple, easy to apply method of cable management and/or protection which allows for breakouts at any point. It is available in sizes to suit up to 100mm in black and clear as standard.

This binding sleeve is an economical product ideal for many different applications in many different industries. It offers a fast, flexible method of binding cable looms and wires before and after installation, with a construction allowing lead outs at any point and each size covers a wide range of different sized bundles. It used in the automotive industry, control panels, cabinets and electrical installations for binding cables that need high mechanical protection as well as being valued for its excellent dielectric strength. Other grades of spiral binding are also available on enquiry.

Technical Data

  • Operating Temperature -50°C-+50°C
  • Colours: Black, Clear, Other colours available upon request
  • Sizes: 6.5 → 20
  • Packing: Coils
  • Approvals: RoHS Compliant
  • Applications / Industries:

Properties Typical Values Test Methods
General
Operating Temperature -50°C - + 50°C
Maximum continuous operating temperature -60°C - + 90°C
Physical
Tensile Strength 12MPa
Ultimate elongation 850%
Electrical
Dielectric strength 30kV/mm
Print Spec Quote

Enquiry Form

Fields marked with an * are required

Free Artwork Service

As part of the fully comprehensive print process, we offer a free artwork service for both thermal and hot foil printing. This involves, advising on print suitability, resizing to fit final fitted size and re-ordering information supplied in spreadsheet format according to the sequence of installation or into kits.

To ensure superior print results, it stands to reason that artwork needs to be best quality and this is why we advise on whether artwork is suitable for purpose in terms of fine detail and ornate graphics which may not successfully transfer to smaller sleeves and markers, or where a high shrink rate is required. Furthermore, as heatshrinkable products do not shrink in a uniform manner (transverse and longitudinal shrink ratios differ widely) we resize artwork so that there is a strict correlation between original and final fitted dimensions.

We accept many formats for artwork including, but not limited to, tiff, eps, bmp, jpg, gif and PDF. For jpeg, save your image using the best quality. We use a single colour print system. This means the sleeving and print can be different colours, but the print itself can only be one colour. For best results send your image in black and white with what you would like printed in black. We can then take the image and print it on your selected sleeving in the correct print colour.

We also print from spreadsheets, CSV or text files, .lists or drawings. Where required, we can sort, print and pack according to the sequence of installation.

Complete Cable Identification Solution

With so many cable identification solutions on the market, it can be hard to match these to your specific needs. Printasleeve offers a complete service based on our many years of experience and development in this highly specialised field. We know what works and how to get the best results.

This allows us to offer a fully supported package to get you set up quickly and easily. Whether you are looking to source a complete cable identification package or consumables for an existing one, we will only offer products which have been fully tested by us and in which we have complete confidence. Take advantage of Printasleeve’s over 25 years of printing experience to find the perfect combination for your requirements.
