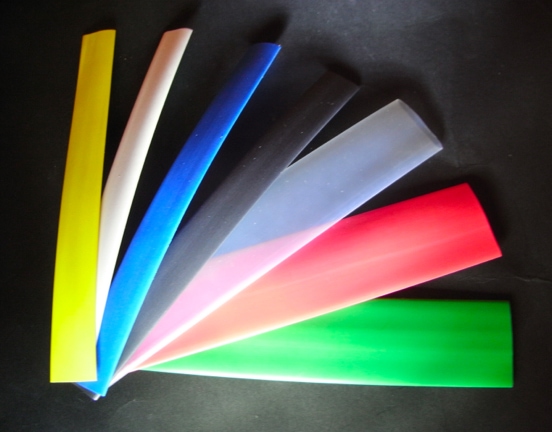

Printashrink SPF3

Printashrink SPF is a 3:1 shrink ratio heatshrink polyolefin with a working temperature of 135°C. It is a UL approved, fire retardant sleeve which meets MIL-SPEC requirements making it perfect for aerospace, military, defence and other professional applications. It is available in several colours and sizes up to 39mm ID and can be cut and printed as required.

This flexible 3:1 heatshrink polyolefin sleeve with a 135°C working temperature is perfect to cover irregular pieces or pass over larger components in situations where MIL-SPEC and/or UL approval is necessary or favourable. It is used in many industries including military/defence, aerospace, electrical, electronic and automotive sectors and is valued for its insulation, mechanical protection and strain relief properties for commercial applications. The higher shrink ratio also allows any one supplied diameter to fit a greater range of different sized applications. We offer our full range of printing and cutting services on this high quality, commercial sleeve making it perfect for identification, branding and marking requirements.

Print Spec Quote
Free Artwork Service Available

Free Artwork
Service Available

View More

Complete Cable Identification Solution Available

Complete Cable
Identification Solution

View More

Technical Data

  • Shrink Ratio: 3:1
  • Shrink Temperature" >80°C
  • Operating Temperature -55°C - +135°C
  • Flame Retardant: Yes (except clear)
  • Colours: Black, Red, Yellow, Blue, White, Clear, Other colours available upon request
  • Sizes: 1.5/0.5 → 39/13
  • Packing: Reels, mini-reels, mini-packs, cut to length, kits, cut sleeves
  • Print: Yes, full range of text and logos in all colours
  • Approvals: AMS-DTL-23053/5 Cl 1, UL certified, CSA certified, Def Stan 59-97 Type 2b, VG 95343 Pt5 Type A+B, VDE 0341 Pt9005, BS 4G-198 Pt3 11B, RoHS compliant
  • Applications / Industries:

Properties Typical Values Test Methods
Operating Temperature -55°C - +135°C
Full recovery temperature 120°C
Shrink temperature >80°C
Shrink Ratio 3:1
Longitudinal change +0% -10%
Flammability Pass (except clr) ASTM D2671
Heat shock (4hrs) No dripping, cracking or flowing
Low temperature flexibility (4hrs @ -55°C) No cracking
Heat ageing (168hrs) @ 175°C, no dripping, cracking or flowing
Dielectric strength 20kV/mm min
Fluid resistance At 23°C for 24hrs, aircraft fuel, phosphate ester based, lubricating oil ester based ISO1871 Test liquids B, 103, 101
Print Spec Quote

Enquiry Form

Free Artwork Service

As part of the fully comprehensive print process, we offer a free artwork service for both thermal and hot foil printing. This involves, advising on print suitability, resizing to fit final fitted size and re-ordering information supplied in spreadsheet format according to the sequence of installation or into kits.

To ensure superior print results, it stands to reason that artwork needs to be best quality and this is why we advise on whether artwork is suitable for purpose in terms of fine detail and ornate graphics which may not successfully transfer to smaller sleeves and markers, or where a high shrink rate is required. Furthermore, as heatshrinkable products do not shrink in a uniform manner (transverse and longitudinal shrink ratios differ widely) we resize artwork so that there is a strict correlation between original and final fitted dimensions.

We accept many formats for artwork including, but not limited to, tiff, eps, bmp, jpg, gif and PDF. For jpeg, save your image using the best quality. We use a single colour print system. This means the sleeving and print can be different colours, but the print itself can only be one colour. For best results send your image in black and white with what you would like printed in black. We can then take the image and print it on your selected sleeving in the correct print colour.

We also print from spreadsheets, CSV or text files, .lists or drawings. Where required, we can sort, print and pack according to the sequence of installation.

Complete Cable Identification Solution

With so many cable identification solutions on the market, it can be hard to match these to your specific needs. Printasleeve offers a complete service based on our many years of experience and development in this highly specialised field. We know what works and how to get the best results.

This allows us to offer a fully supported package to get you set up quickly and easily. Whether you are looking to source a complete cable identification package or consumables for an existing one, we will only offer products which have been fully tested by us and in which we have complete confidence. Take advantage of Printasleeve’s over 25 years of printing experience to find the perfect combination for your requirements.
