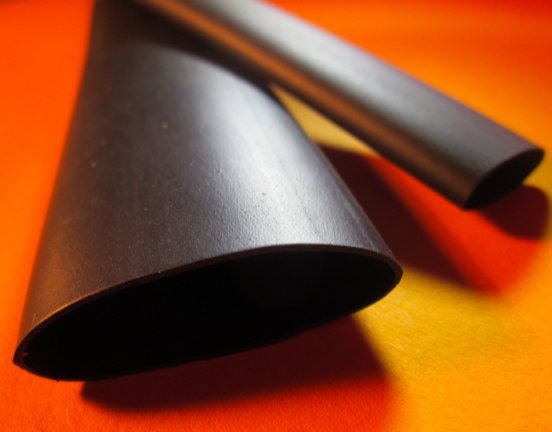

Printashrink DR

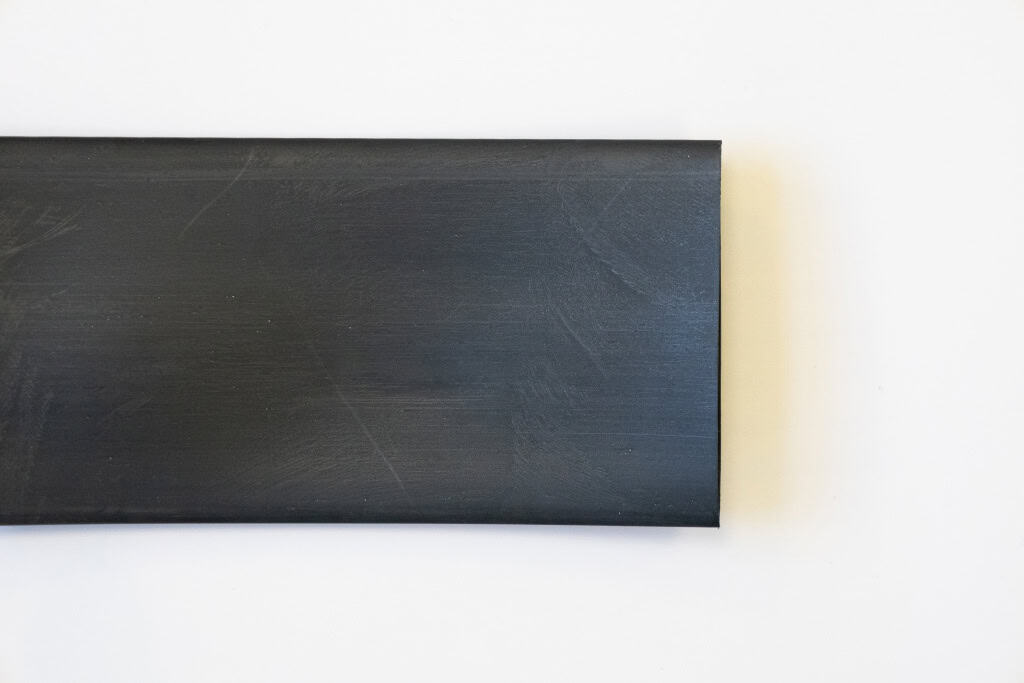

Printashrink DR is a diesel-resistant, non-flammable heatshrinkable tube which also offers excellent abrasion resistance. It has a continuous operating temperature up to 150°C and a 2:1 shrink ratio, and is available in black in sizes up to 50.8mm ID as standard and can be cut and printed as required.

This diesel resistant medium walled high performance heatshrink elastomer sleeving is specially formulated for high temperature fluid and long term heat resistance. It offers excellent protection against most fluids including aviation fuel, diesel, hydraulic fluids and lubricating oils. This makes it suitable for protecting military, ground and vehicle cables and harnesses. Furthermore its abrasion resistance and superior mechanical properties recommend it for harsh environments. It is used in many sectors including military, aerospace, marine, industrial and railways.

Technical Data

  • Shrink Ratio: 2:1
  • Shrink Temperature" 175°C
  • Operating Temperature -75°C - + 150°C
  • Flame Retardant: Pass
  • Colours: Black
  • Sizes: 3.2 → 50.8
  • Packing: Reels, cut to length, cut sleeves
  • Print: Yes, subject to testing
  • Approvals: AMS-DTL-23053/16 VG95343 Pt5 DEF STAN 59-97 Type 6B, RoHS compliant
Properties Typical Values Test Methods
General
Operating Temperature -75°C - + 150°C
Shrink temperature 175°C
Shrink Ratio 2:1
Physical
Tensile Strength 14MPa min ISO 37
Ultimate elongation 350% min ISO 37
Thermal
Flammability Pass ASTM D876
Heat shock (4hrs) at 215°C, no dripping, cracking or flowing ASTM D2671
Low temperature flexibility (4hrs @ -55°C) at -75°C, No cracking ASTM D2671
Heat ageing (168hrs) at 160°C, tensile 10 MPA min, elongation 200% min ASTM D2671
Electrical
Dielectric strength 8kV/mm min IEC 243-1
Chemical
Copper corrosion No corrosion ASTM D2671
Fluid resistance Gasoline, diesel fuel, hydraulic fluid, lubricating oil - tensile 10MPa min, elongation 300% min ISO 37
Fungus resistance Not greater than rating 2 BS 2011 Pt 2 1J
Print Spec Quote

Enquiry Form

Fields marked with an * are required

Free Artwork Service

As part of the fully comprehensive print process, we offer a free artwork service for both thermal and hot foil printing. This involves, advising on print suitability, resizing to fit final fitted size and re-ordering information supplied in spreadsheet format according to the sequence of installation or into kits.

To ensure superior print results, it stands to reason that artwork needs to be best quality and this is why we advise on whether artwork is suitable for purpose in terms of fine detail and ornate graphics which may not successfully transfer to smaller sleeves and markers, or where a high shrink rate is required. Furthermore, as heatshrinkable products do not shrink in a uniform manner (transverse and longitudinal shrink ratios differ widely) we resize artwork so that there is a strict correlation between original and final fitted dimensions.

We accept many formats for artwork including, but not limited to, tiff, eps, bmp, jpg, gif and PDF. For jpeg, save your image using the best quality. We use a single colour print system. This means the sleeving and print can be different colours, but the print itself can only be one colour. For best results send your image in black and white with what you would like printed in black. We can then take the image and print it on your selected sleeving in the correct print colour.

We also print from spreadsheets, CSV or text files, .lists or drawings. Where required, we can sort, print and pack according to the sequence of installation.

Complete Cable Identification Solution

With so many cable identification solutions on the market, it can be hard to match these to your specific needs. Printasleeve offers a complete service based on our many years of experience and development in this highly specialised field. We know what works and how to get the best results.

This allows us to offer a fully supported package to get you set up quickly and easily. Whether you are looking to source a complete cable identification package or consumables for an existing one, we will only offer products which have been fully tested by us and in which we have complete confidence. Take advantage of Printasleeve’s over 25 years of printing experience to find the perfect combination for your requirements.
