PCN

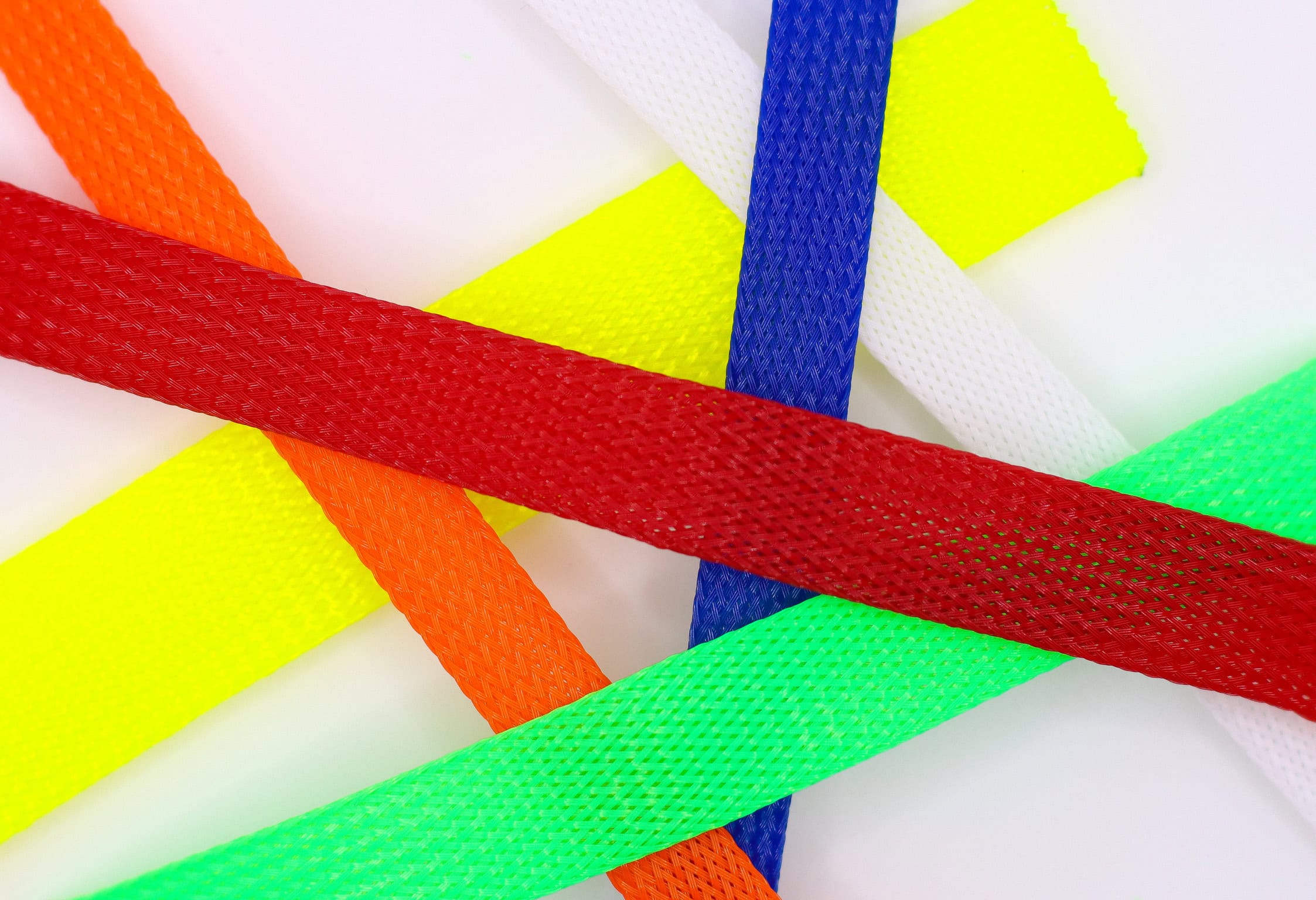

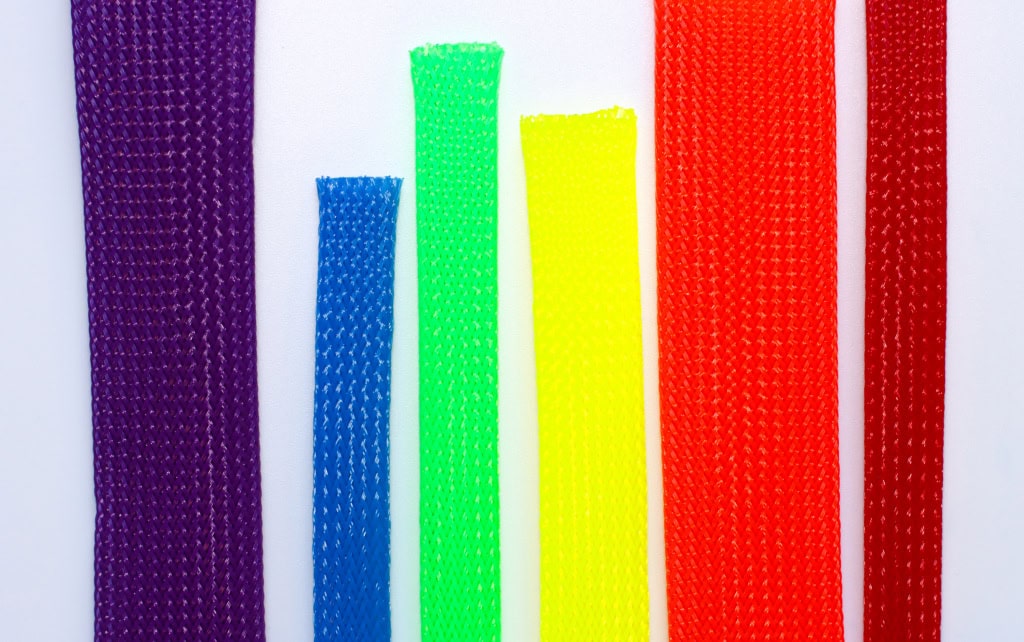

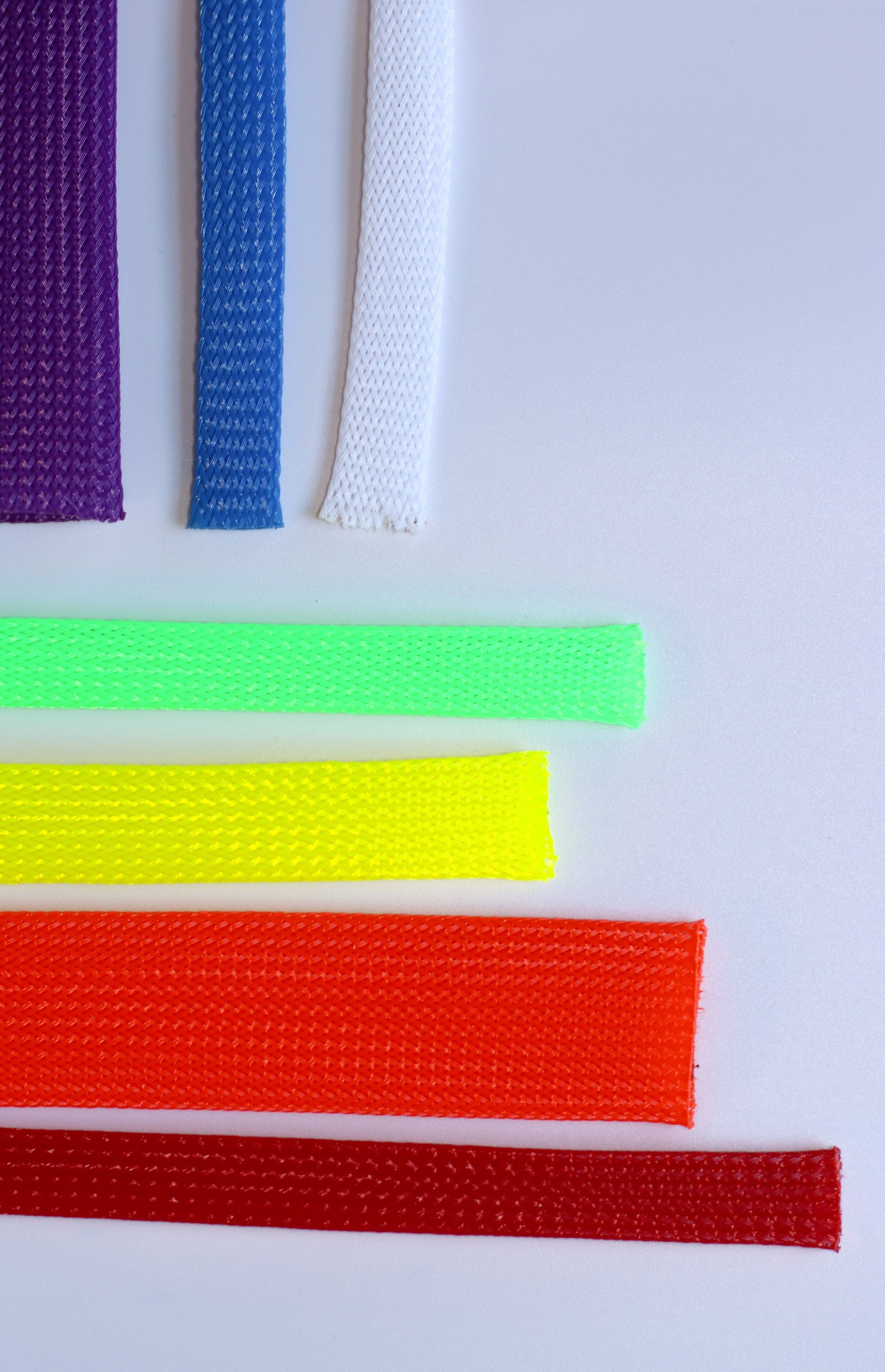

PCN is a flame retardant polyester expandable braided jacket available in a range of 7 high density colours and sizes from 3mm up to 50mm as standard and can be cut as required.  It is used in various industries and home projects for wire and cable organisation and protection as well as branding, identification and colour coding.

This expandable braided sleeve is a lightweight, easy to apply covering that doesn’t trap heat or moisture, and can improve overall airflow to increase cooling capabilities of components. It is manufactured from a thicker 0.25mm PET monofilaments allowing for a vibrancy of colour and the fact that it readily expands makes installation efficient even over large diameter transitions and around bends. It also means fewer sizes fit a greater number of applications. Once installed, PCN retracts resulting in a smooth, close fitting sleeve. Popular applications include in the manufacture of audio and other leads/cables, modding and lighting components as well as more standard industrial applications. Other grades of coloured PET braid are available on enquiry.

Technical Data

  • Operating Temperature -50°C-+ 150°C
  • Flame Retardant: Yes
  • Colours: Red, yellow, white, Blue, Green, Orange, Violet, Other colours available upon request
  • Sizes: 3 → 50
  • Packing: Reels, mini-reels, mini-packs, cut to length, cut sleeves
  • Approvals: UL approved, RoHS Compliant
  • Applications / Industries:

Properties Typical Values Test Methods
General
Operating Temperature -50°C - + 150°C
Short-term peak temperature Up to 175°C
Melt temperature 240°C
Monofilament thickness 0.25mm
Thermal
Flammability Self -extinguishing, V-2 FMVSS 302, UL94 on compound
Chemical
Chemical resistance Unaffected by most chemicals D47 1924
Toxicity Halogen free
Opacity Low smoke density
Print Spec Quote

Enquiry Form

Fields marked with an * are required

Free Artwork Service

As part of the fully comprehensive print process, we offer a free artwork service for both thermal and hot foil printing. This involves, advising on print suitability, resizing to fit final fitted size and re-ordering information supplied in spreadsheet format according to the sequence of installation or into kits.

To ensure superior print results, it stands to reason that artwork needs to be best quality and this is why we advise on whether artwork is suitable for purpose in terms of fine detail and ornate graphics which may not successfully transfer to smaller sleeves and markers, or where a high shrink rate is required. Furthermore, as heatshrinkable products do not shrink in a uniform manner (transverse and longitudinal shrink ratios differ widely) we resize artwork so that there is a strict correlation between original and final fitted dimensions.

We accept many formats for artwork including, but not limited to, tiff, eps, bmp, jpg, gif and PDF. For jpeg, save your image using the best quality. We use a single colour print system. This means the sleeving and print can be different colours, but the print itself can only be one colour. For best results send your image in black and white with what you would like printed in black. We can then take the image and print it on your selected sleeving in the correct print colour.

We also print from spreadsheets, CSV or text files, .lists or drawings. Where required, we can sort, print and pack according to the sequence of installation.

Complete Cable Identification Solution

With so many cable identification solutions on the market, it can be hard to match these to your specific needs. Printasleeve offers a complete service based on our many years of experience and development in this highly specialised field. We know what works and how to get the best results.

This allows us to offer a fully supported package to get you set up quickly and easily. Whether you are looking to source a complete cable identification package or consumables for an existing one, we will only offer products which have been fully tested by us and in which we have complete confidence. Take advantage of Printasleeve’s over 25 years of printing experience to find the perfect combination for your requirements.
