Printashrink PF-A1 HW

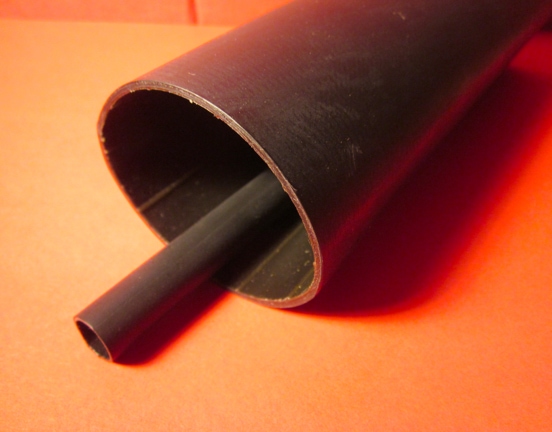

Printashrink PF/A1 HW is a heavy walled heatshrink polyolefin with an integral thermoplastic adhesive liner. With a 3:1 shrink ratio, it has all the advantages of the standard PF/A1 3-1 and provides maximum reliability resistance for insulating and protecting joints and terminations. It is available in black as standard in sizes up to 350mm ID and can be cut and printed as required.

This glue lined, 110°C, heavy walled tube consists of a heatshrink polyolefin tube with a thermally activated inner adhesive liner. The inner liner melts and flows to encapsulate connectors and components providing moisture-resistant, environmental protection, strain relief and insulative properties which are perfect for high impact, abrasion, corrosion and chemical resistance. It is submersible and often used in direct burial installations. It is available in 1.2 metre lengths and with or without adhesive lining. We offer our full cutting and limited printing service on this specialist sleeve.

Technical Data

  • Shrink Ratio: 3:1 (min)
  • Shrink Temperature" 120°
  • Operating Temperature -55°C - +110°C
  • Colours: Black
  • Sizes: 9/3 → 350/95
  • Packing: 1.2 metre lengths, cut to length, cut sleeves
  • Print: Yes subject to testing
  • Approvals: RoHS Compliant
  • Applications / Industries:

Properties Typical Values Test Methods
Operating Temperature -55°C - +110°C (jacket)
Shrink temperature 120°C
Shrink Ratio 3:1
Tensile Strength 14MPa ASTM D 638
Ultimate elongation >400% ASTM D 638
Specific gravity 1.05 g/cm³ ASTM-D 792
Longitudinal change +0% to -10% UL 224
Water absorption <0.15% ISO 62
Heat ageing (168hrs) at 150°C, elongation >300%
Dielectric strength >18kV/mm IEC 93
Volume resistivity 10¹³Ωcm IEC 93
Print Spec Quote

Enquiry Form

Free Artwork Service

As part of the fully comprehensive print process, we offer a free artwork service for both thermal and hot foil printing. This involves, advising on print suitability, resizing to fit final fitted size and re-ordering information supplied in spreadsheet format according to the sequence of installation or into kits.

To ensure superior print results, it stands to reason that artwork needs to be best quality and this is why we advise on whether artwork is suitable for purpose in terms of fine detail and ornate graphics which may not successfully transfer to smaller sleeves and markers, or where a high shrink rate is required. Furthermore, as heatshrinkable products do not shrink in a uniform manner (transverse and longitudinal shrink ratios differ widely) we resize artwork so that there is a strict correlation between original and final fitted dimensions.

We accept many formats for artwork including, but not limited to, tiff, eps, bmp, jpg, gif and PDF. For jpeg, save your image using the best quality. We use a single colour print system. This means the sleeving and print can be different colours, but the print itself can only be one colour. For best results send your image in black and white with what you would like printed in black. We can then take the image and print it on your selected sleeving in the correct print colour.

We also print from spreadsheets, CSV or text files, .lists or drawings. Where required, we can sort, print and pack according to the sequence of installation.
